1. Introduction

This chapter includes an overview, receiver features, and devices in the package.

1.1 Overview​

TAS - Z6 Robotic Total Station, equipped with a powerful Android-based intelligent system, offers a user-friendly experience, enabling quick operation and enhancing work efficiency. Its Power Search and Automatic Target Recognition (ATR) functions are remarkable.

Power Search can find prisms in any direction within 300 meters in 15 seconds, while ATR ensures precise aiming, allowing for accurate measurements within 1200 meters. This enables single-man operation and continuous monitoring. TAS-Z6 is a smart choice for power, performance, and productivity which essentially optimize the time and cost with utmost accuracy.

1.2 Receiver features​

The TAS-Z6 Robotic Total Station has following features:

  • High-precision angular measurement with 1″ accuracy, ensuring reliable and consistent results.

  • Power Search (PS1) and Automatic Target Recognition (ATR2) enable rapid prism detection, precise locking, and continuous tracking without repeated manual aiming.

  • Single-prism measurement range up to 6,000 m with distance accuracy of ±(1 mm + 1 ppm).

  • Non-prism3 measurement capability up to 1,000 m, providing flexibility for complex environments.

  • Android-based intelligent operating system with an intuitive touchscreen interface and optimized workflows.

  • Ultra-quiet drive system allows silent operation in urban, indoor, and noise-sensitive environments.

  • Supports true one-man operation and long-term continuous monitoring.

  • 600 m long-range Bluetooth ensures stable wireless communication, enabling reliable remote control and automated total station operation over extended distances.

  • A built-in 5-megapixel HD wide-angle camera provides real-time visual information of the measurement environment.

Note:

(1) High-speed prism search function that automatically scans a wide area to rapidly detect and lock onto the target prism.

(2) Automatic detection, recognition, and tracking of the target prism for continuous measurement and robotic operation.

(3) Distance measurement performed without a reflector, using direct laser reflection from the target surface.

1.3 Devices in the package​

The devices in the package may vary according to the customer requirement. Here describes the major parts in the package.

1.3.1 TAS-Z6 Robotic Total Station​

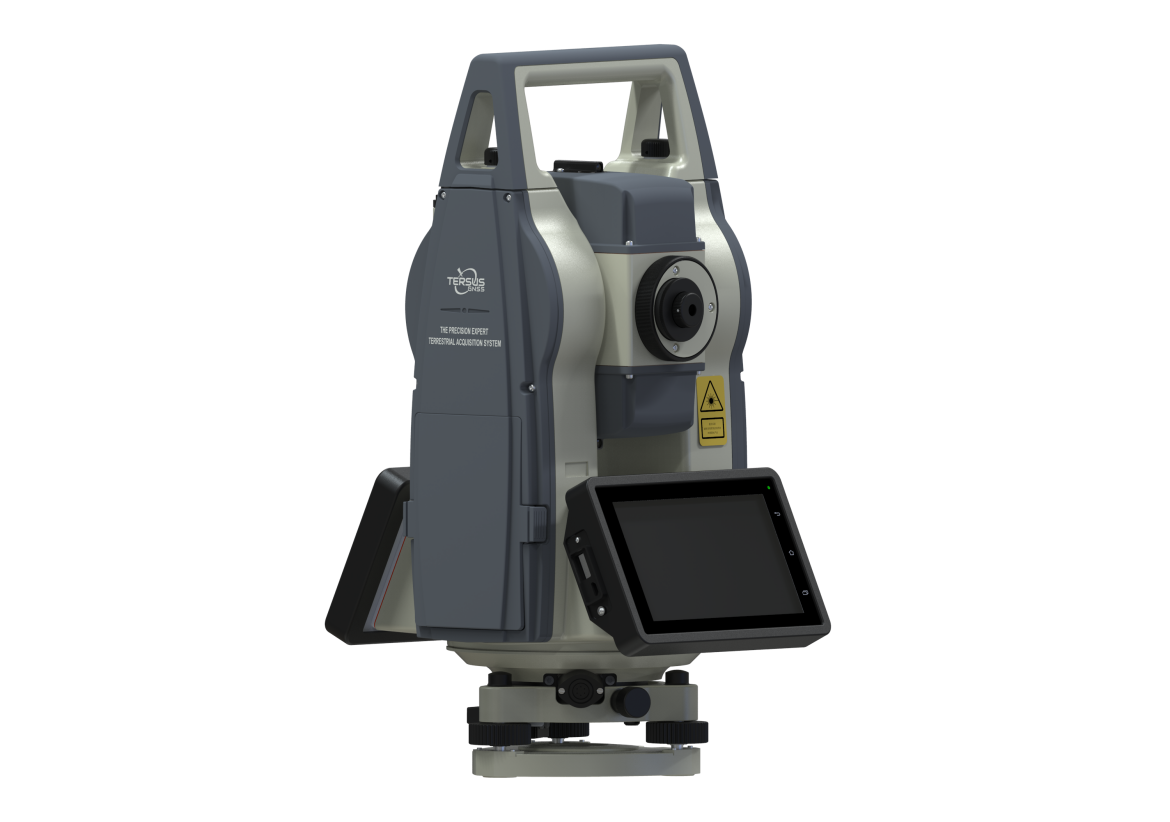

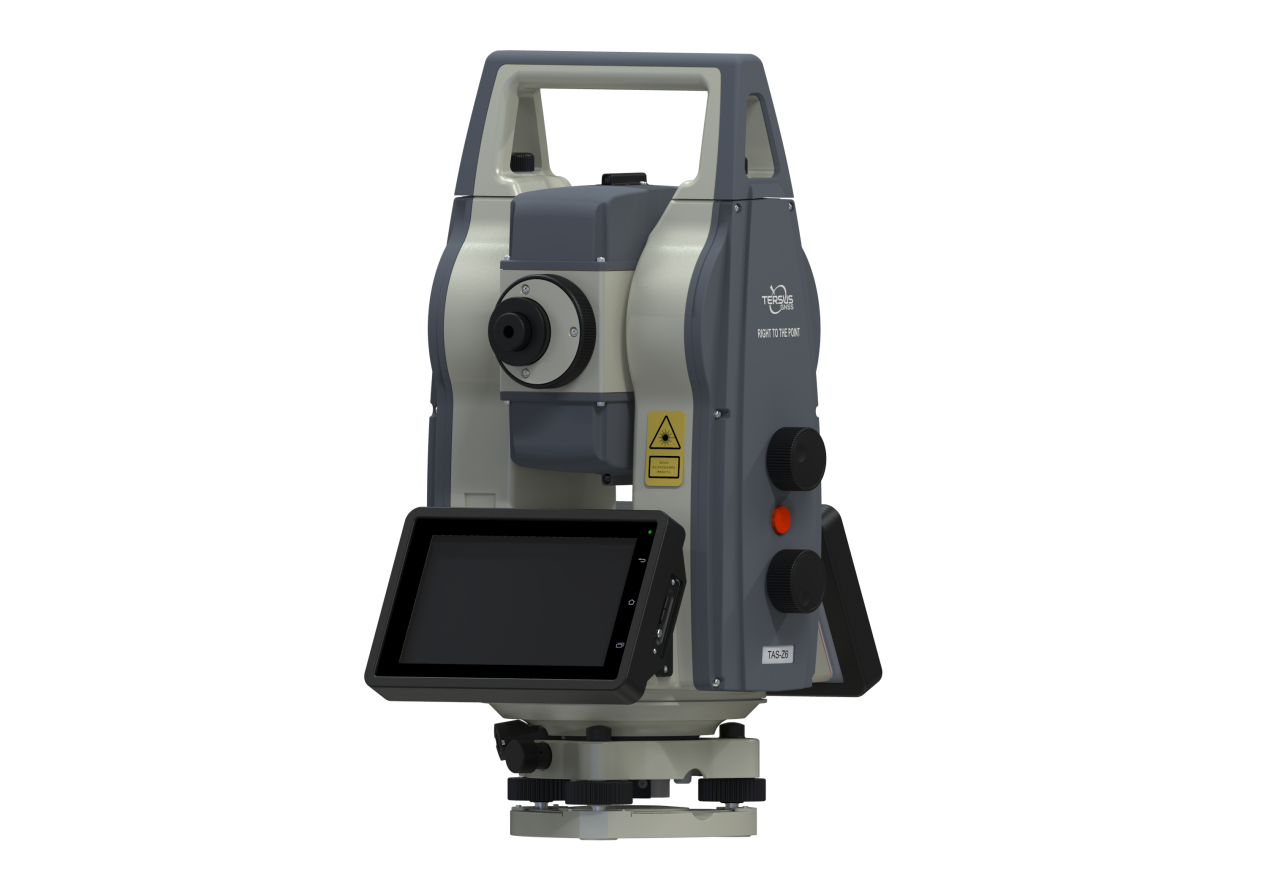

The TAS-Z6 Robotic Total Station shown as below.

06af93509ec3105693dd17106e775858
ca172648ff61f984b7c94f8233d06dff
1 PS Transmitter 14 Instrument ID
2 Camera 15 Eyepiece Focusing Ring
3 Guide Light 16 Eyepiece
4 PS Receiver 17 Eyepiece Handle
5 Optical Unit 18 Optical Focusing Ring
6 Display Screen 19 Circle Bubble
7 Foot Screw 20 Power Button
8 Handle 21 Volume Button
9 Bluetooth Antenna 22 Tribrach
10 Battery Bay 23 Central Mark
11 Serial Port 24 Vertical Tangent Unit
12 Tribrach Lock 25 Trigger Key
13 Collimator 26 Horizontal Tangent Unit

1.3.2 Battery and charger​

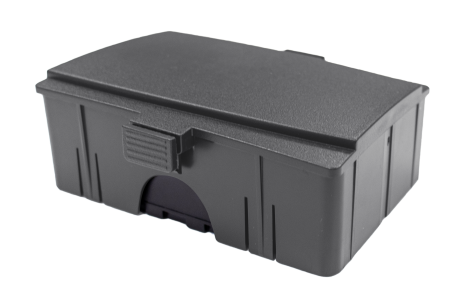

The TAS-Z6 Robotic Total Station is equipped with two rechargeable lithium batteries, which can support 12 hours of work.

IMG_5024

1.3.3 Adapter​

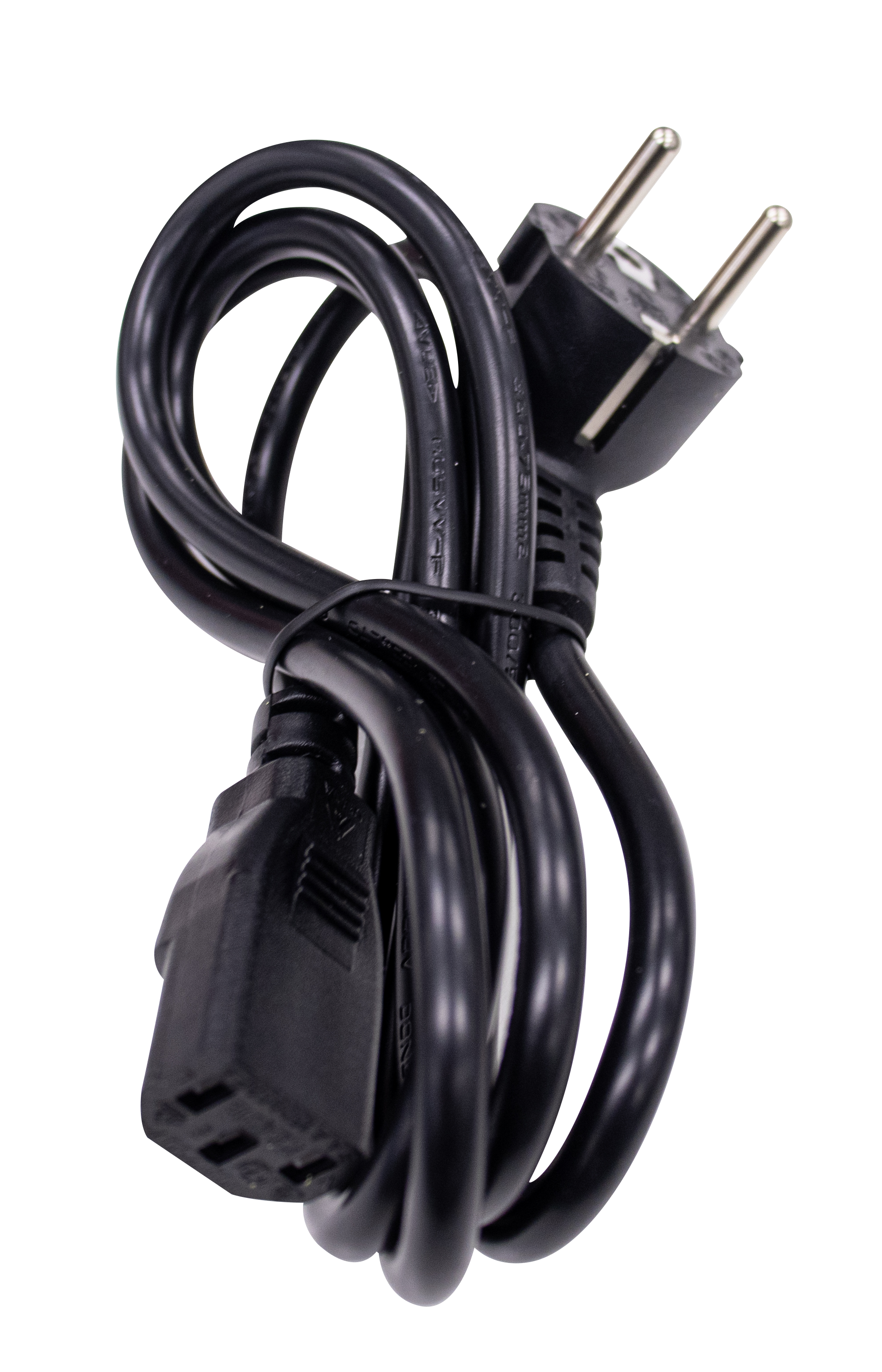

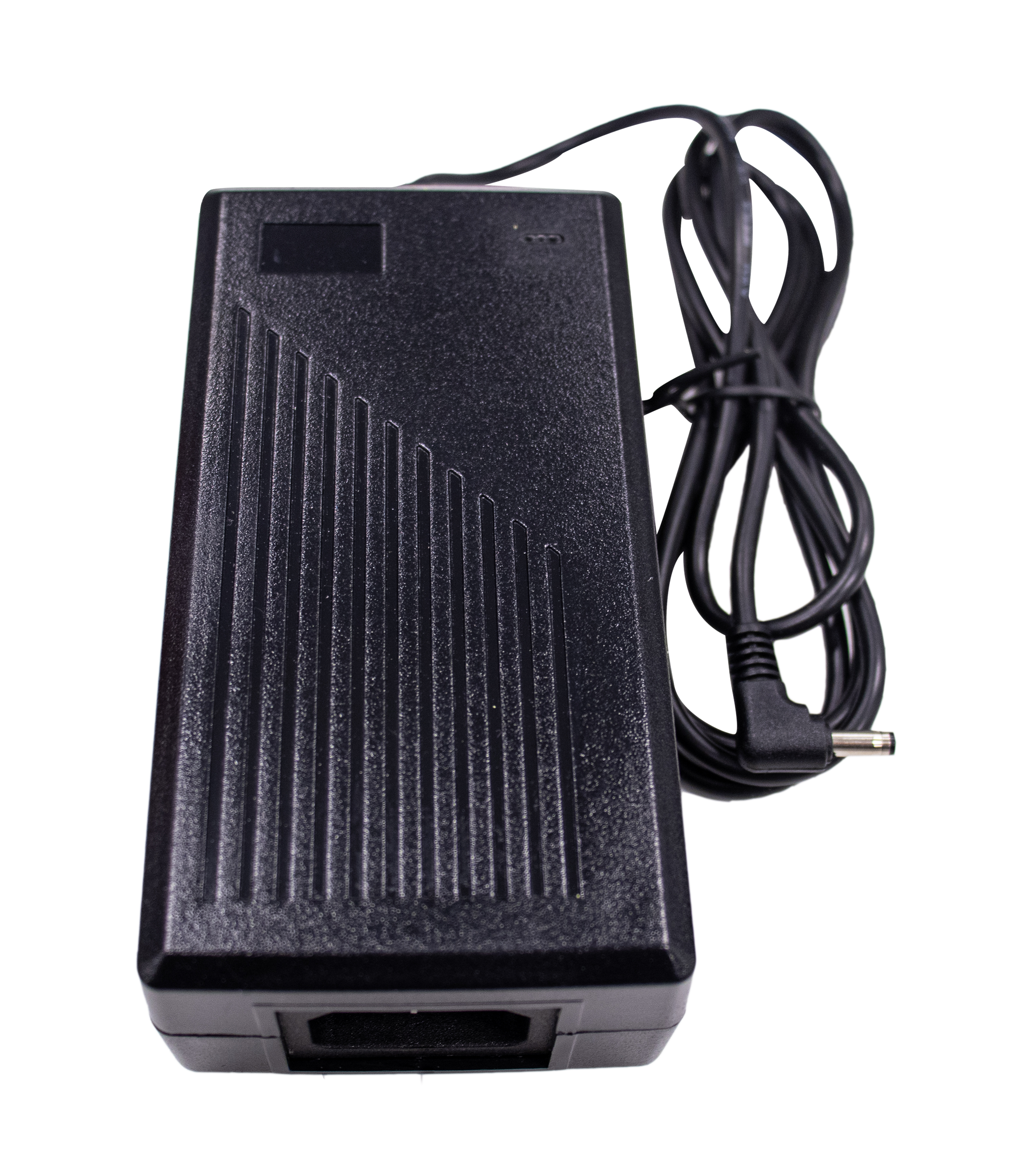

The TAS-Z6 Robotic Total Station is equipped with adapter,It can be used to recharge.

IMG_5032
IMG_5028
IMG_5032
IMG_5028

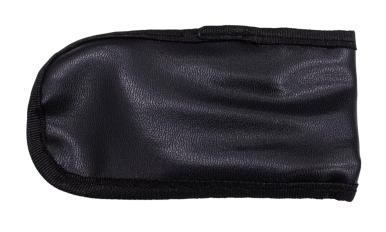

1.3.4 Prism​

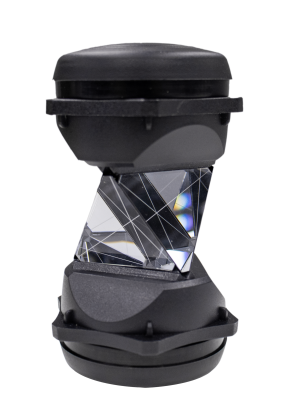

The TAS-Z6 Robotic Total Station is equipped with a 360°prism with a prism constant of −7 mm.

IMG_5037
IMG_5038

1.3.5 Reflective sheet​

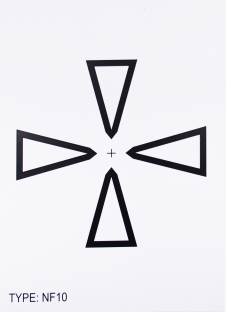

The TAS-Z6 Robotic Total Station box comes with reflective sheet.

IMG_5045
