3.Technical Specifications
This chapter mainly introduces the technical specifications of TS20 GNSS receiver, TC80 Controller , external radio and internal radio whip antenna.
3.1 TS20 GNSS receiver
Table 3.1 TS20 GNSS receiver performance
+------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | GNSS Performance | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Position accuracy(RMS) | Single Point Positioning | 1.5m (Horizontal) | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | | | 3.0m (Vertical) | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | | DGPS Positioning | 0.25m (Horizontal) | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | | | 0.5m (Vertical) | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | | High Precision Static | 2.5mm+0.1ppm (Horizontal) | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | | | 3.5mm+0.4ppm (Vertical) | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | | Static & Fast Static | 2.5mm+0.5ppm (Horizontal) | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | | | 5mm+0.5ppm (Vertical) | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | | Post Processed Kinematic | 2.5mm+1ppm (Horizontal) | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | | | 5mm+1ppm (Vertical) | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | | Real Time Kinematic | 8mm+1ppm (Horizontal) | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | | | 15mm+1ppm (Vertical) | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | | Network Real Time Kinematic | 8mm+0.5ppm (Horizontal) | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | | | 15mm+0.5ppm (Vertical) | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Observation accuracy (zenith direction) | C/A code | 10cm | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | | P code | 10cm | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | | Carrier phase | 1mm | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Time To First Fix (TTFF) | Cold start | <35s | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | | Warm start | <10s | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Reacquisition | <1s | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Tilt compensation accuracy (within 60° ) | ≤2cm | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Timing accuracy (RMS) | 20ns | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Velocity accuracy (RMS) | 0.03m/s | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Initialization (typical) | 4s | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Initialization reliability | >99.99% | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | System & Data | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Operating system | Linux | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Storage | built-in 32GB | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Data format | CMR, CMR+ (GPS only), RTCM 2.3, RTCM3.0, RTCM3.1, RTCM3.2 | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Data output | RINEX, NMEA-0183, Tersus Binary | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Software Support | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Tersus Nuwa | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Communication | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Cellular | 4G LTE/WCDMA/GSM/EDG | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Cellular bands | LTE FDD B1,B3,B7,B8,B20,B28A | | | | | | | | LTE TDD B38,B40,B41 | | | | | | | | WCDMA B1,B8 | | | | | | | | GSM/EDGE B3,B8 | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Network protocols | Ntrip Client, Ntrip Server, Tersus Caster Service (TCS) | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Wi-Fi | 802.11b/g | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Bluetooth | 4.1 | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Internal radio | RF transmit power | 0.5W/1W/2W | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | | Frequency | 410MHz ~ 470MHz | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | | Operating mode | Half-duplex | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | | Channel spacing | 12.5KHz / 25KHz | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | | Modulation type | GMSK, 4FSK | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | | Air baud rate | 4800/9600/19200 bps | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | | Radio protocols | TrimTalk450, TrimMark 3, South, Transparent, Satel | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | USB OTG | Type-C, OTG x1 | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Electrical | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | External power supply | Support USB (5~20V) | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Fast charging | Support, 15W max(5V 3A) | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Lithium battery | 7000mAh/7.4V | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Charing time | 3 hours (20%~90%) | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Battery charging temperature: | +10°C ~ +45°C | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Battery working time | Up to 9 hours | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Physical | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Dimension | ф132x68mm | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Weight | ≈850g | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Screw hole for assembly | 5/8''x11UNC-2B | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Vibration | MIL-STD-810G,FIG.514.6C-1 | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Environmental | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Operating temperature | -40°C to +70°C | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Storage temperature | -55°C to +85°C | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Relative humidity | 100% not condensed | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Water & dust proof | IP68 | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+ | Pole drop onto concrete | 2m | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+
The pin definition of the TNC connector is as below:
Table 3.2 Pin definition of the TNC connector
Connector Pin No. Pin Definition
Inside Signal
Outside Ground
Table 3.3 Default factory configuration for internal radio
Channel Frequency
00 457.550MHz
01 458.050MHz
02 458.550MHz
03 459.050MHz
04 459.550MHz
05 460.550MHz
06 461.550MHz
07 462.550MHz
08 463.550MHz
09 464.550MHz
Customized frequency 410~470MHz
Table 3.4 Detailed configuration information for internal radio
Protocol Modulation type Channel band Air baud rate COM baud rate
TrimTalk450 GMSK 12.5 KHz 4800 bps 9600/19200/38400/115200bps
GMSK 25 KHz 9600 bps 9600/19200/38400/115200bps
TrimMark3 GMSK 50 KHz 19200 bps 9600/19200/38400/115200bps
Transparent GMSK 12.5 KHz 4800 bps 9600/19200/38400/115200bps
GMSK 25 KHz 9600 bps 9600/19200/38400/115200bps
Satel 4FSK 12.5 KHz 9600 bps 9600/19200/38400/115200bps
4FSK 25 KHz 19200 bps 9600/19200/38400/115200bps
South GMSK 12.5 KHz 4800 bps 9600/19200/38400/115200bps
GMSK 25 KHz 9600 bps 9600/19200/38400/115200bps
GMSK 50 KHz 19200 bps 9600/19200/38400/115200bps
3.2 TC80 controller
Table 3.5 TC80 technical specification
+------------------------+------------------------------------------------+ | System | | +------------------------+------------------------------------------------+ | Operating System | Android 12 | +------------------------+------------------------------------------------+ | CPU | Octa-Core 2.0GHz | +------------------------+------------------------------------------------+ | Memory | 6GB RAM + 64GB ROM | +------------------------+------------------------------------------------+ | External storage | Micro SD, up to 256GB | +------------------------+------------------------------------------------+ | Display | 5.5″ sunlight-readable capacitive touch screen | +------------------------+------------------------------------------------+ | Resolution | 720x1440 | +------------------------+------------------------------------------------+ | Camera | 13MP Auto Focus Camera | +------------------------+------------------------------------------------+ | Flash Light | High light Flash LED | +------------------------+------------------------------------------------+ | Electrical | | +------------------------+------------------------------------------------+ | Battery | 7700mAh 3.8V | +------------------------+------------------------------------------------+ | Battery Life | 10 hours | +------------------------+------------------------------------------------+ | Charging Time | <4 hours (fast charge) | +------------------------+------------------------------------------------+ | Communication | | +------------------------+------------------------------------------------+ | Wi-Fi | IEEE 802.11a/b/g/n 2.4G&5G | +------------------------+------------------------------------------------+ | Cellular Mode | Dual SIM Dual Standby | +------------------------+------------------------------------------------+ | SIM1 & SIM2 | FDD-LTE B1/B3/B5/B7/B8 | | | | | | TDD-LTE B38/B39/B40/B41 | | | | | | WCDMA B1/B2/B5/B8 | | | | | | GSM B2/B3/B5/B8 | | | | | | CDMA/EVDO BC0/BC1 | +------------------------+------------------------------------------------+ | Bluetooth | BT5.0 (BLE) | +------------------------+------------------------------------------------+ | USB | USB Type-C (supports OTG) | +------------------------+------------------------------------------------+ | NFC | Protocol of ISO14443A/B, and ISO15693 | | | | | | Readable Distance 0~5cm | +------------------------+------------------------------------------------+ | GNSS | GPS/GLONASS/BeiDou | +------------------------+------------------------------------------------+ | Sensors: | G-Sensor, Compass, Light-Sensor, Gyro | +------------------------+------------------------------------------------+ | Physical | | +------------------------+------------------------------------------------+ | Dimension | 221.3mmx77.7mmx19.6mm | +------------------------+------------------------------------------------+ | Weight | 320g (include battery) | +------------------------+------------------------------------------------+ | Reliability | | +------------------------+------------------------------------------------+ | Operating Temperature | -20°C ~ +60°C | +------------------------+------------------------------------------------+ | Storage Temperature | -30°C ~ +70°C | +------------------------+------------------------------------------------+ | Humidity | 5% ~ 95% | +------------------------+------------------------------------------------+ | Dustproof & Waterproof | IP68 | +------------------------+------------------------------------------------+ | Shock | 1.5m drop onto concrete | +------------------------+------------------------------------------------+

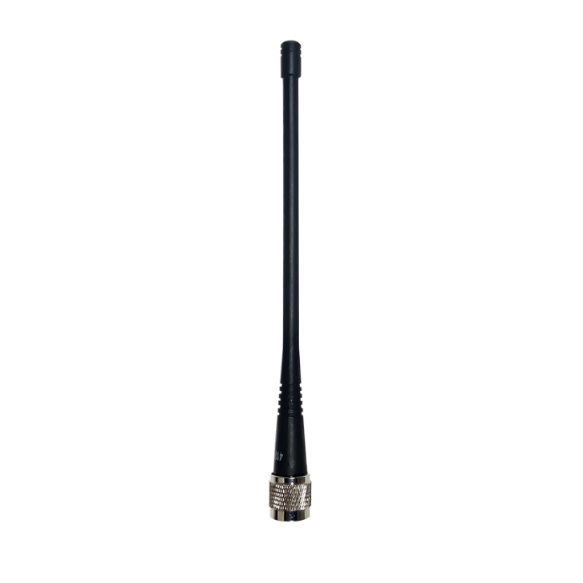

3.3 Radio whip antenna
The 410-470MHz radio whip antenna is to be installed on the TNC port to transmit or receive signal for the internal radio. This antenna is elastic whip structure, resistant to bending.
Table 3.6 Radio whip antenna technical specification
Technical Specification
Frequency Range 410~470MHz
Bandwidth 60MHz
Polarization Mode Vertical
Gain 2dBi
Input Impedance 50Ω
VSWR ≤2.5
Maximum Power 20W
Connector TNC Male
Antenna Length 168mm
Antenna Weight About 50g
Extreme Wind Speed 120 Km/h
