Introduction

This chapter includes overview, receiver features, and devices in the package.

1.1 Overview

TS20 GNSS receiver is an innovative integration of visual positioning technology, GNSS, IMU and a camera. Its CAD AR visual stakeout allows for precise path planning, while the IMU ensures accuracy with no tilt angle limit. With an internal high-performance multi-constellation and multi-frequency GNSS board, the TS20 GNSS receiver can provide high accuracy and stable signal detection. The high-performance antenna can speed up the time to first fix (TTFF) and improve anti-jamming performance. The built-in large capacity battery supports up to 9 hours of field work in 4G/3G/2G network and Rover radio mode. The built-in UHF radio module supports long distance communication. The rugged housing protects the equipment from harsh environments.

1.2 Receiver features

The TS20 GNSS receiver has following features:

• Supports multiple constellations & frequencies

<!-- -->

• GPS L1C/A, L2C, L2P, L5

• GLONASS L1C/A, L2C/A

• Beidou B1, B2, B3 , support BDS-3

• Galileo E1, E5a, E5b

• QZSS L1C/A, L2C, L5

• SBAS supports WAAS, EGNOS, GAGAN, SDCM, MSAS

<!-- -->

• Supports 1792 channels.

• Professional camera, visual navigation and stakeout in One step.

• Supports 410-470MHz UHF radio, 4G network, Wi-Fi , Bluetooth, NFC.

• Tilt compensation without calibration, immune to magnetic disturbances .

• 32GB internal storage

• Up to 9 hours working in 4G/3G/2G network and Rover radio mode

• IP68-rated dust- & waterproof enclosure, for reliability in harsh environmental conditions

• Free subscription of Tersus Caster Service (TCS): transmit the correction data from Base to Rover

1.3 Devices in the package

The devices in the package may vary according to the customer requirement. Here describes the major parts in the package.

1.3.1 TS20 GNSS receiver

The TS20 GNSS receiver has three versions which are shown as below.

Figure 1.1 TS20 GNSS receiver

Buttons

One buttons is equipped on TS20 GNSS receiver.

[]: Power ON/OFF button. When the device is off, long press it for 2 seconds to power on the receiver. When the receiver is on, long press it for over 3 seconds to power off the receiver.

LED Indicators

Four LED indicators for TS20 GNSS receiver; smart battery with power display on the bottom. The LEDs on the front panel indicate various operating conditions. The detailed LED Descriptions are shown in the tables below.

Satellite

Correction Data

Solution

Static

Battery

Power ON/OFF

Figure 1.2 Buttons and display on TS20

Table 1.1 LED indicators

+----------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+ | LED indicator | Description | +----------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+ | | Blue LED. No flashing indicates no satellites. Flashing indicates that it is searching satellites. If only 1-3 satellites are found, it flashes every 5 seconds. If more than 4 satellites are found, it flashes every 1 second. | | | | | Satellite | | +----------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+ | | Blue LED. Flashing indicates correction data. | | | | | Correction data | | +----------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+ | | Blue LED indicates static survey mode. | | | | | Static Survey | | +----------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+ | | Blue LED. Steady blue indicates fixed solution, flashing 1Hz indicates floating solution, off light for other solutions. | | | | | Solution status | | +----------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+ | | Blue LED. Steady blue in normal operation. Slow flash indicates the battery level is between 25% and 15%. Fast flash indicates the battery level is below 15% and reminds users to change battery. | | | | | Battery | | +----------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+

Power Display

Battery Button

Figure 1.3 Smart battery with power display

Table 1.2 Power display and button

---

LED indicator Description

Battery Button After clicking the battery button, the green light will be on to display the current remaining power.

Power Display Green LED. Under normal circumstances, one indicator represents 25% of the power. When charging, the green light flashes to display the current charging power.

---

LED Flash Patterns

The possible flash patterns of various states of receiver operation are listed in the table below.

Table 1.3 Possible LED flash patterns

---

Receiver mode Button operation LED flash patterns

Receiver OFF Long press the power button for 3s All LEDs are off.

Receiver ON Long press the power button for 2s All LEDs are on, then all off, and each LED especially the power button starts to indicate current status after initialization.

Low power N/A Battery LED flashes slow.

Battery exhausting N/A Battery LED flashes fast.

Searching satellites N/A Satellite LED flashes.

Satellites tracked N/A Satellite LED flashes every 5s for 1-3 satellites and flashes every 1s for more than 4 satellites.

Receiving valid data packet N/A Correction data LED flashes blue at 1Hz.

Static mode N/A Static status LED is steady blue.

Fixed solution N/A Solution status LED is steady blue.

Floating solution N/A Solution status LED flashes blue at 1Hz.

Firmware upgrade N/A For Basic version, all six LEDs are on for 1s thereafter only power LED lights up, then all LEDs light up when upgrading, lights off when restarting. Then all six LEDs light up for 1s thereafter only power LED lights up means it restarts successfully with updated firmware.

---

Note: N/A means Not Applicable.

Receiver Ports

The bottom of TS20 receiver is shown as below.

TNC port

Type-C port

SIM slot

Camera

Smart battery with power display

Screw hole

Figure 1.4 Bottom of TS20 GNSS receiver

Table 1.4 Receiver ports on the bottom side

---

Icon Name Connections

Serial port & external power Device, computer, USB drive, external power, communication, external radio

SIM slot Nano SIM card

TNC port 410-470MHz radio antenna

Screw hole 5/8'' x 11 UNC-2B connector for corresponding connector and pole.

---

1.3.2 Type-C to USB cable

Functions:

1.Connect to the USB port of computer for data downloading;

2.Firmware upgrade, details refer to section 2.4；

3. Connect to the charger adapter to charge TS20. Charge the battery completely before using TS20 for the first time. The charging takes approximately 3 hours at room temperature. If the battery has been stored for longer than three months, charge it before use.

Figure 1.5 Type-C to USB cable

1.3.3 Adapter

Connect to the Type-C cable to charge TS20. The maximum power can reach 15W(5V 3A), realizing fast charging.

Figure 1.6 Adapter for EU

Figure 1.7 Adapter for US

Figure 1.8 Adapter for UK

Figure 1.9 Adapter for AU

EU: European, US: American, UK: British, AU: Australian

1.3.4 TC80 controller

TC80 is a rugged multi-functional data controller with design of 5.5 inch sunlight readable HD touch screen and an alphanumerical keypad. Equipped with powerful processor and android operating system, it is perfect to adapt with Tersus software. With professional IP68 rating, it is robust and reliable for harsh operating conditions. The large capacity lithium battery guarantees more than 10 hours of field working for a whole day of multiple surveying tasks.

Features:

• 5.5 inch sunlight readable HD touch screen

• Octa-core 2.0GHz CPU

• Android 12 operating system

• 6GB RAM + 64GB ROM

• 13MP rear camera

• IP68 certified grade, water/shock/dust proof

• 7700mAh battery

• Wi-Fi, Bluetooth, NFC, 4G

• USB Type-C

Note: Although the TC80 controller uses chemical and impact resistant materials, precision instruments require careful use and maintenance and should be kept as dry as possible. In order to improve the stability and life cycle of the TC80 controller, avoid exposing the TC80 controller to extreme environments such as moisture, high temperatures, low temperatures, corrosive liquids or gases.

---

 TC80 must be in the specified temperature range -20 °C \~ 60 °C when used and stored.

---

Figure 1.10 TC80 Controller

Power on: Press and hold the power button for 3 seconds

Power off: Press and hold the power button for 3 seconds, select 'Power Off' in the menu option.

Reboot: Press and hold the power button for 2 seconds and click "Restart" in the menu option.

Forced restart: Press and hold the power button for 8 seconds to force the controller to restart.

Introduction of functional keys：

• Menu Key: Select to show applications that was used recently.

• Home Key: Return to home screen. To view recent application, press and hold the home key.

• Back Key: Return to previous screen.

• APP Key: Quick start Nuwa application.

• Positioning Key: Perform the function of starting measurement in the Survey and Stakeout interface of Nuwa application.

• **Short Press on Power Key：**Control the screen on and off.

• Enter Key: Execute the function of confirming in Nuwa application.

The accessories of TC80 Controller are listed below.

TC80 Charger

Figure 1.11 TC80 Charger

Type-C Cable

Figure 1.12 Type-C Cable

Functions:

1. Connect to the USB port of computer for data downloading;

2. Connect to the charger to charge TC80 controller.

1.3.5 Other accessories

Other accessories may be packed according to customer requirements.

The GNSS antenna connector is used to install TS20 to a tripod.

Figure 1.13 GNSS antenna connector

The height measure accessory is used to determine the height of TS20 with higher accuracy.

Figure 1.14 Height measure accessory

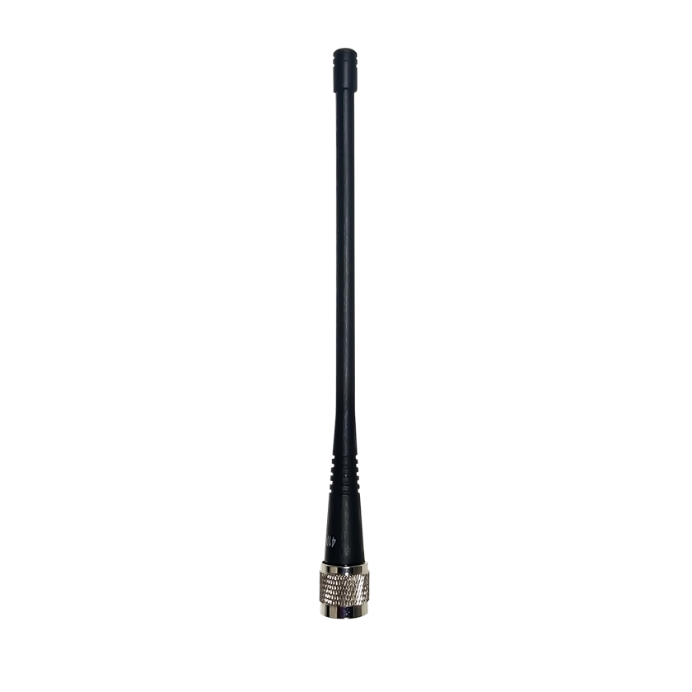

The 410-470MHz radio whip antenna is to be installed on the TNC port to transmit or receive signal for the internal radio.

Figure 1.15 410-470MHz radio whip antenna

When using TS20 as a rover, you need a ranging pole.

Figure 1.16 Ranging Pole

The bracket for TC80 controller is to fix the TC80 controller on a ranging pole.

Figure 1.17 Bracket for TC80

A yellow carrying case is to store all the devices and accessories except ranging pole, high gain radio antenna and telescopic pole.

Figure 1.18 Carrying Case
