3.Technical Specifications
This chapter mainly introduces the technical specifications of Oscar GNSS receiver, TC20&TC50 Controller , external radio and internal radio whip antenna.
3.1Oscar GNSS receiver
Table 3.1[]{#_Toc3623 .anchor} Oscar GNSS receiver performance
+------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | GNSS Performance | | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Position accuracy(RMS) | Single Point Positioning | 1.5m (Horizontal) | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | | | 3.0m (Vertical) | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | | DGPS Positioning | 0.25m (Horizontal) | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | | | 0.5m (Vertical) | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | | High Precision Static | 2.5mm+0.1ppm (Horizontal) | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | | | 3.5mm+0.4ppm (Vertical) | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | | Static & Fast Static | 2.5mm+0.5ppm (Horizontal) | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | | | 5mm+0.5ppm (Vertical) | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | | Post Processed Kinematic | 2.5mm+1ppm (Horizontal) | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | | | 5mm+1ppm (Vertical) | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | | Real Time Kinematic | 8mm+1ppm (Horizontal) | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | | | 15mm+1ppm (Vertical) | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | | Network Real Time Kinematic | 8mm+0.5ppm (Horizontal) | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | | | 15mm+0.5ppm (Vertical) | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Observation accuracy (zenith direction) | C/A code | 10cm | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | | P code | 10cm | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | | Carrier phase | 1mm | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Time To First Fix (TTFF) | Cold start | <35s | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | | Warm start | <10s | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Reacquisition | <1s | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Tilt compensation accuracy (within 60° ) | ≤2cm | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Timing accuracy (RMS) | 20ns | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Velocity accuracy (RMS) | 0.03m/s | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Initialization (typical) | 4s | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Initialization reliability | >99.99% for Ultimate, >99.9% for Advanced and Basic | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | System & Data | | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Operating system | Linux | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Storage | built-in 16GB/8GB | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Data format | CMR, CMR+ (GPS only), RTCM 2.3, RTCM3.0, RTCM3.1, RTCM3.2 | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Data output | RINEX, NMEA-0183, Tersus Binary | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Software Support | | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Tersus Nuwa, MicroSurvey FieldGenius | | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Communication | | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Cellular | 4G LTE/WCDMA/GSM | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Cellular bands | FDD LTE 1,3,7,8,20,28A | 2,4,5,12,13 | | | | | | | | | | TDD LTE 38,40,41 | | | | | | | | | | | WCDMA 1,8 | 2,5 | | | | | | | | | | GSM3,8 | | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Network protocols | Ntrip Client, Ntrip Server, Tersus Caster Service (TCS) | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Wi-Fi | 802.11b/g | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Bluetooth | 4.1 | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Internal radio | RF transmit power | 0.5W/1W/2W | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | | Frequency | 410MHz ~ 470MHz | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | | Operating mode | Half-duplex | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | | Channel spacing | 12.5KHz / 25KHz | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | | Modulation type | GMSK, 4FSK | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | | Air baud rate | 4800/9600/19200 bps | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | | Distance (typical) | >5km | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | | Radio protocols | TrimTalk450, TrimMark 3, South, Transparent, Satel | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | USB OTG | USB 2.0 x1 | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Serial ports | RS232 x1 | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | COM baud rate | Up to 921600bps | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Electrical | | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Input voltage | +9 ~ 28V DC | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Power consumption | Network or radio receive mode | | ≈ 5W | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | | Radio transmit mode (0.5W) | | ≈ 8W | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | | Radio transmit mode (1W) | | ≈ 9W | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | | Radio transmit mode (2W) | | ≈ 11W | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Lithium battery | 7.4V 6400mAh x2 | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Battery charging temperature: | +10°C ~ +45°C | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Battery working time | Up to 8 hours | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Physical | | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Display | 1.54'' OLED for Ultimate & Advanced versions | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Dimension | 157*157*103 mm | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Weight | ≈ 1.2kg (without battery), ≈ 1.4kg (with a battery) | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Screw hole for assembly | 5/8"x11UNC-2B | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Vibration | MIL-STD-810G,FIG.514.6C-1 | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Environmental | | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Operating temperature | -40°C to +70°C | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Storage temperature | -55°C to +85°C | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Relative humidity | 100% not condensed | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Water & dust proof | IP68 | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+ | Pole drop onto concrete | 2m | | | +------------------------------------------+-----------------------------------------------------------+----------------------------------------------------+------------------+
The pin definition's view from outside to the serial port is as below.
Figure 3.1[]{#_Toc13910 .anchor} Serial data port of Oscar
Table 3.2[]{#_Toc21305 .anchor} Pin definition of the serial data port
Connector Pin No. Pin Definition
1 GND
2 GND
3 PWR
4 TXD
5 RXD
The pin definition of the TNC connector is as below:
Table 3.3[]{#_Toc11329 .anchor} Pin definition of the TNC connector
Connector Pin No. Pin Definition
Inside Signal
Outside Ground
The pin definition of the battery contacts is as below:
Table 3.4[]{#_Toc18056 .anchor} Pin definition of the battery contacts
Connector Pin No. Pin Definition
1 + Positive
2 Data
3 Clock
4 - Negative
Table 3.5[]{#_Toc14980 .anchor} Default factory configuration for internal radio
Channel Frequency
00 457.550MHz
01 458.050MHz
02 458.550MHz
03 459.050MHz
04 459.550MHz
05 460.550MHz
06 461.550MHz
07 462.550MHz
08 463.550MHz
09 464.550MHz
Customized frequency 410~470MHz
Table 3.6[]{#_Toc3173 .anchor} Detailed configuration information for internal radio
Protocol Modulation type Channel band Air baud rate COM baud rate
TrimTalk450 GMSK 12.5 KHz 4800 bps 9600/19200/38400/115200bps
GMSK 25 KHz 9600 bps 9600/19200/38400/115200bps
TrimMark3 GMSK 50 KHz 19200 bps 9600/19200/38400/115200bps
Transparent GMSK 12.5 KHz 4800 bps 9600/19200/38400/115200bps
GMSK 25 KHz 9600 bps 9600/19200/38400/115200bps
Satel 4FSK 12.5 KHz 9600 bps 9600/19200/38400/115200bps
4FSK 25 KHz 19200 bps 9600/19200/38400/115200bps
South GMSK 12.5 KHz 4800 bps 9600/19200/38400/115200bps
GMSK 25 KHz 9600 bps 9600/19200/38400/115200bps
GMSK 50 KHz 19200 bps 9600/19200/38400/115200bps
3.2TC20 controller
Table 3.7[]{#_Toc27133 .anchor} TC20 technical specification
+------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------+ | System | | +------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------+ | Operating system | Android 6.0 | +------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------+ | CPU | MTK MT6735 Quad-Core 1.3GHz | +------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------+ | Memory | 2GB RAM + 16GB ROM | +------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------+ | External flash | Micro SD , up to 64GB | +------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------+ | Keypad backlight | White | +------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------+ | Display | 4.3" capacitive touch screen | +------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------+ | Resolution | 480x800 | +------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------+ | Camera | 8M pixel, auto focus | +------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------+ | Flash light | High light flash LED | +------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------+ | Language | 47 languages including Chinese, English, Filipino, French, Greek, Italian, Japanese, Korean, Malay, Portuguese, Romanian, Russian, Spanish, Thai, Turkish, etc. | +------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------+ | GNSS | | +------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------+ | Signal tracking | GPS, GLONASS | +------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------+ | Communication | | +------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------+ | Wi-Fi | IEEE 802.11a/b/g/n | +------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------+ | Cellular mode | Dual SIM dual standby | +------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------+ | SIM1 & SIM2 | FDD-LTE 800 / 1800 / 2100 / 2600MHz | | | | | | TD-LTE 1900 / 2300 / 2500 / 2600MHz | | | | | | WCDMA 850 / 900 / 1900 / 2100MHz | | | | | | GSM 850 / 900 / 1800 / 1900MHz | +------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------+ | Bluetooth | V4.1 | +------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------+ | USB | Micro USB for charging and data (OTG) | +------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------+ | Audio Jack | 3.5mm Audio Jack for audio | +------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------+ | NFC | Standard | +------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------+ | Sensors | G-sensor, Compass, Barometer, Light-sensor, Gyro | +------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------+ | Electrical | | +------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------+ | Power | 5V DC, 1.0A | +------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------+ | Battery | 3.7V 6500mAh | +------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------+ | Battery life | 10 hours operation, 720 hours standby | +------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------+ | Charging time | 4.5 hours (5V 2A input), 8 hours (5V 1A input) | +------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------+ | Physical | | +------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------+ | Dustproof & Waterproof | IP68 | +------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------+ | Shock | 0.8m drop onto concrete | +------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------+ | Dimension | 210mmx87mmx31mm | +------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------+ | Weight | 495g (include battery) | +------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------+ | Operating temperature | -20 °C ~ +55 °C | +------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------+ | Storage temperature | -30 °C ~ +65 °C | +------------------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------+
3.3TC50 controller
Table 3.8[]{#_Toc22764 .anchor} TC50 technical specification
+------------------------+----------------------------------------------+ | System | | +------------------------+----------------------------------------------+ | Operating System | Android 8.1 | +------------------------+----------------------------------------------+ | CPU | MT6763 Octa-Core 2.0GHz | +------------------------+----------------------------------------------+ | Memory | 4GB RAM + 64GB ROM | +------------------------+----------------------------------------------+ | External storage | Micro SD, up to 128GB | +------------------------+----------------------------------------------+ | Display | 5″ sunlight-readable capacitive touch screen | +------------------------+----------------------------------------------+ | Resolution | 720x1280 | +------------------------+----------------------------------------------+ | Camera | 5MP front, 13MP rear | +------------------------+----------------------------------------------+ | Flash Light | High light Flash LED | +------------------------+----------------------------------------------+ | Electrical | | +------------------------+----------------------------------------------+ | Battery | 7000mAh 3.8V | +------------------------+----------------------------------------------+ | Battery Life | 14 hours | +------------------------+----------------------------------------------+ | Charging Time | <4 hours (fast charge) | +------------------------+----------------------------------------------+ | Communication | | +------------------------+----------------------------------------------+ | Wi-Fi | IEEE 802.11a/b/g/n 2.4G&5G | +------------------------+----------------------------------------------+ | Cellular Mode | Dual SIM Dual Standby | +------------------------+----------------------------------------------+ | SIM1 & SIM2 | FDD-LTE B1/B3/B5/B7/B8 | | | | | | TD-LTE B38/B39/B40/B41 | | | | | | TDSCDMA B34/B39 | | | | | | WCDMA B1/B2/B5/B8 | | | | | | CDMA1x/CDMA2000 BC0/BC1 | | | | | | GSM B2/B3/B5/B8 | +------------------------+----------------------------------------------+ | Bluetooth | BT4.1 (BLE) | +------------------------+----------------------------------------------+ | USB | USB Type-C (supports OTG) | +------------------------+----------------------------------------------+ | NFC | Protocol of ISO14443A/B, and ISO15693 | | | | | | Readable Distance 0~5cm | +------------------------+----------------------------------------------+ | GNSS | GPS/GLONASS/BeiDou | +------------------------+----------------------------------------------+ | Sensors: | G-Sensor, Compass, Light-Sensor, Gyro | +------------------------+----------------------------------------------+ | Physical | | +------------------------+----------------------------------------------+ | Dimension | 207mmx84mmx20mm | +------------------------+----------------------------------------------+ | Weight | 370g (include battery) | +------------------------+----------------------------------------------+ | Reliability | | +------------------------+----------------------------------------------+ | Operating Temperature | -20°C ~ +55°C | +------------------------+----------------------------------------------+ | Storage Temperature | -30°C ~ +70°C | +------------------------+----------------------------------------------+ | Humidity | 5% ~ 95% | +------------------------+----------------------------------------------+ | Dustproof & Waterproof | IP68 | +------------------------+----------------------------------------------+ | Shock | 1.5m drop onto concrete | +------------------------+----------------------------------------------+
3.4External radio for Oscar
Table 3.9 External radio RS400H3 technical specification
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
| General Specification | | | |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
| Frequency range | | 410~470MHz | |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
| Operating mode | | Simplex | |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
| Channel width | | 25KHz, 12.5KHz | |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
| Modulation Type | | GMSK/4FSK | |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
| Operating voltage | | 9~16V DC | |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
| Power consumption | | High power (28W) | 78W @ DC 12V |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
| | | Medium power (22W) | 60W @ DC 12V |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
| | | Low power (5W) | 35W @ DC 12V |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
| | | Standby | 2W @ DC 12V |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
| Frequency stability | | ≤±1.0ppm | |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
| Transmitter | | | |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
| RF output power | | High level (28W) | 44.5±0.5dBm @ DC 12V |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
| | | Medium level (22W) | 43.4±0.5dBm @ DC 12V |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
| | | Low level (5W) | 37±1dBm @ DC 12V |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
| Power stability | | ±1dBm | |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
| Adjacent channel power | | >50dB | |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
| Distance(Typical) | | 14-16KM | |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
| Antenna | | | |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
| Antenna Impedance | | 50 Ohm | |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
| Antenna Interface | | TNC female | |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
| Modem | | | |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
| Air baud rate | | 4800bps, 9600bps, 19200bps | |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
| Modulation Type | | GMSK/4FSK | |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
| Serial port baud rate | | 9600bps, 19200bps, 38400bps, 57600bps, 115200bps | |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
| Protocol | | TRIMTALK, TRIMMK3, TRANSEOT,SOUTH, SATEL | |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
| Environmental | | | |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
| Temperature | | Operating | -40 ~ +65°C |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
| | | Storage | -50 ~ +85°C |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
| Dustproof and waterproof | | IP67 | |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
| Physical Description | | | |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
| Dimension | | 175 x 130 x 86.5 mm | |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
| Weight | | About 2.0kg | |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
| Data & Power interface | | LEMO 5pin | |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
| Installation | | Hook | |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+

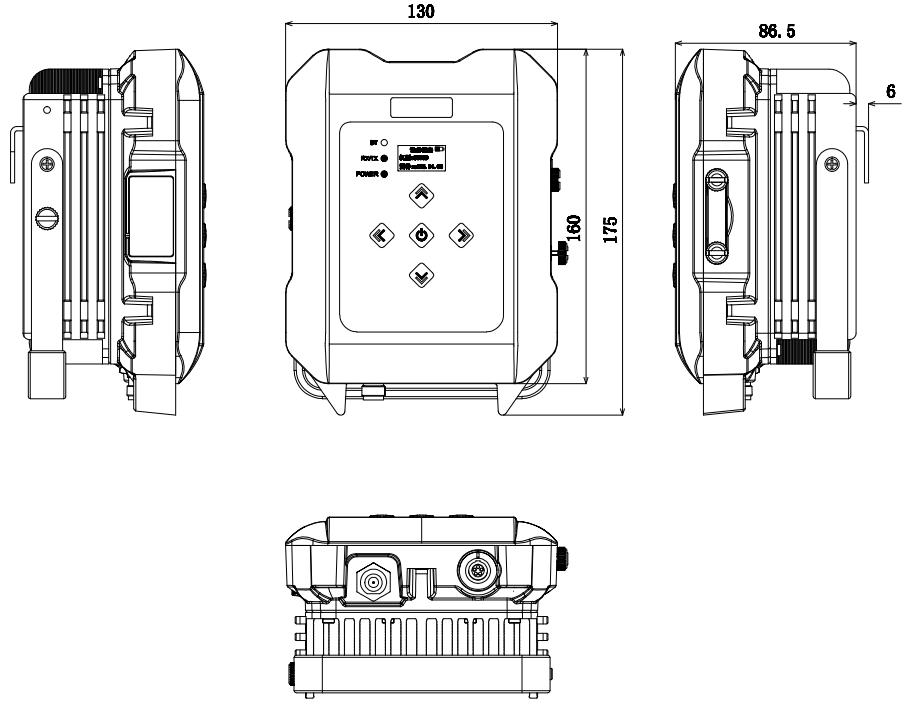

| Mechanical Drawing | | | |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
|
| | | |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
| Signal Definition | | | |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
| Data & power interface |
| | Pin 1: PWR (9~16V DC) |
| | | | |
| | View from outside to radio | | Pin 2: Power GND |
| | | | |
| | | | Pin 3: RXD |
| | | | |
| | | | Pin 4: Signal GND |
| | | | |
| | | | Pin 5: TXD |
+--------------------------------------------------------------------------------------------------------------------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------------------+-------------------------+
Table 3.10 Default factory configuration for Radio RS400H3
Channel Frequency
00 457.550MHz
01 458.050MHz
02 458.550MHz
03 459.050MHz
04 459.550MHz
05 460.550MHz
06 461.550MHz
07 462.550MHz
08 463.550MHz
09 464.550MHz
Customized frequency 410~470MHz

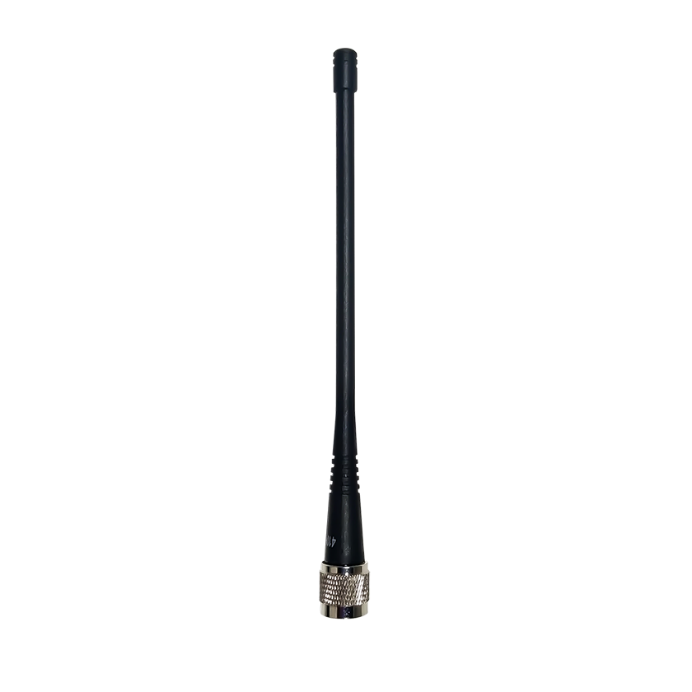

3.5Radio whip antenna
The 410-470MHz radio whip antenna is to be installed on the TNC port to transmit or receive signal for the internal radio. This antenna is elastic whip structure, resistant to bending.
Table 3.11 Radio whip antenna technical specification
Technical Specification
Frequency Range 410~470MHz
Bandwidth 60MHz
Polarization Mode Vertical
Gain 2dBi
Input Impedance 50Ω
VSWR ≤2.5
Maximum Power 20W
Connector TNC Male
Antenna Length 168mm
Antenna Weight About 50g
Extreme Wind Speed 120 Km/h
